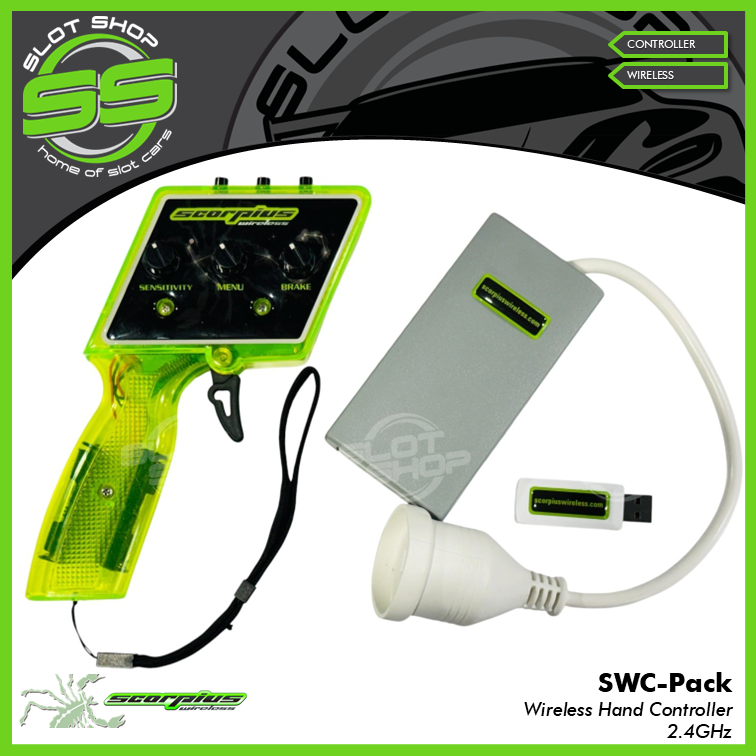

Scorpius Analogue Controller and Receiver
The Scorpius controller is a purely digital controller that can be used for traditional analogue racing. Race
any analogue car on any positively wired analogue track.


CONTROLLER SPECIFICATION
• 2.4GHz wireless control.
• 16x2 LCD menu board.
• 255 throttle steps.
• 100 step braking. Adjustable in 1% increments on the fly, visible on screen.
• 1-24 car IDs
• Analogue compatible using Scorpius Wireless Analogue Module (WAM).
• Lane Change, Menu/Lights and Aux buttons.
• Sensitivity, Menu and Brake knobs.
• Wrist strap.
• Speed limiter (Choke) for pit speed, learners or twisty tracks.
• Throttle map editing and storage on PC or controller.
• Encrypted data transmission to prevent hacking.
• Driver name on screen, can be customized.
• Firmware version in menu.
• Wirelessly upgradeable using Scorpius dongle and PC.
• Wirelessly configurable using Scorpius dongle and PC.
• 2 finger trigger available soon.
• Adjustable spring tension.
• Turn on/off or flash high beam whilst driving.
• Frictionless, maintenance free hall sensor system.
• Ergonomically balanced and comfortable to hold.
• Runs on 2 x 1.5V Alkaline AAA batteries. Up to 100 hours of battery life.
• Rechargeable and lithium batteries not suitable
• Auto turn off battery saving function. Adjustable 1-30 mins in 1 min increments.



WAM (Wireless Analogue Module)

• 2.4GHz wireless control.
• Australian plug supplied.
• 255 throttle steps.
• 100 braking steps.
• Powerful 50A drive mosfet.
• Powerful 30A brake mosfet.
• No cooling required.



DONGLE
• 2.4GHz wireless communication to PC. Windows only.
• Used for creating and uploading throttle curves (maps) to controller.
• Used to change name.
• Used to upgrade controller firmware when and if new upgrades (free) become available.



User manual here: Scorpius-User-Manual-3.0.pdf
WAM manual here: Scorpius-Wireless-Analogue-Module-User-Guide-V2.0.pdf

SKU SWC-PACK
Brand Scorpius
Shipping Weight 0.4990kg
Shipping Width 0.170m
Shipping Height 0.230m
Shipping Length 0.100m
Shipping Cubic 0.003910000m3
