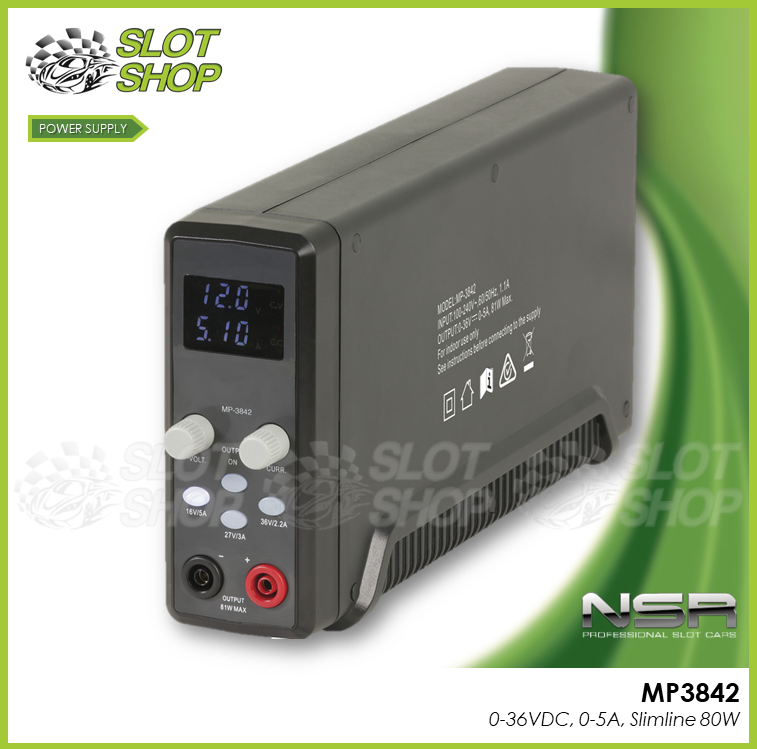

This slimline power supply provides up to 80W of power, set it up to 0-16V @ 0-5A perfect for a home two lane track. It provides constant current and constant voltage options. Simply select your power range, then adjust the controls to obtain your desired outputs. Output is provided via banana sockets which will accept insulated banana plugs. A powerful, compact unit. Includes banana to alligator clamp leads.

Features:

• Constant current / constant voltage options
• Up to 5A current
• Compact design
• Input Voltage: 100-240VAC @ 50/60Hz
• Output Voltage: 0-16VDC 0-5A (Max), 0-27VDC @ 0-3A (Max), 0-36VDC @ 0-2.2A (Max
• Output Power: 80W Max.

Product Specifications

Height   138mm
Width      53mm
Depth   300mm
Weight  886g

Power Supply Units

Type of Power Supply: Laboratory
Regulation Type :          SMPS
Voltage Display:           Yes
Current Display:                        Yes
Output Connection:       Banana 4mm (standard)
Number of Outputs:       1pc
Ripple Voltage:             30mV

Ratings

AC Current:                   1.1A
AC Voltage:                  240V
AC Frequency:              50Hz
DC Voltage:                  36V
DC Current:                   5A

Mains Powered

Mains Voltage Range:   100V-240V
Mains Max Current:        1.1A
Frequency:                    50Hz-60Hz
Rated for AU Mains:      Yes
Auto-select mains voltage: Yes
SKU MP3842
Brand PowerTech
Shipping Weight 0.6500kg
Shipping Width 0.150m
Shipping Height 0.050m
Shipping Length 0.070m
Shipping Cubic 0.000525000m3
